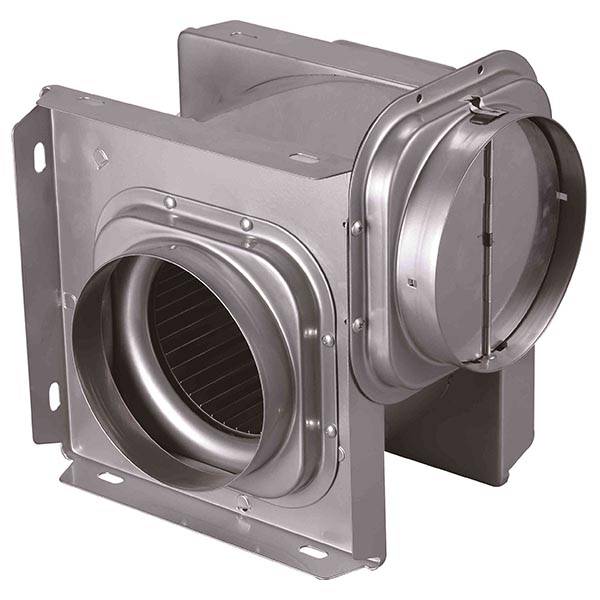

H3 Mini Ventilation Duct Fan
PandaWind Mini Ventilation Duct Fan: Low noise, High suction power, Powerful air volume, Fast air change, Energy saving
90-degree air supply to meet the use of various occasions, 150 ~ 2100 airflow options
Application: Bathroom, Study bedroom, Kitchen, Apartment, Hotel
| Weight | 2.5-18 kg |
|---|---|
| Dimensions | 53 × 51 × 42 cm |
| Frequency | 50Hz, 60Hz |
| Voltages | 110V, 200V, 220V, 240V, 380V |
| Air Volume | 150-2100 |
H3 Mini Ventilation Duct Fan product video
see more details on the video
main points in this video
H3 Mini Ventilation Duct Fan
H3 Mini Ventilation Duct Fan data sheets
| Model | Power | Air Volume | Noise | Static Pressure | Speed | Net Weight | Gross Weight | Installation Info. | Installation Info. | Package Size(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| W | m3/h | dB | Pa | rpm>= | kg | kg | Duct Diameter (mm) | Usable Area (m3) | ||
| PW-DPT10-11 | 21 | 150 | 43 | 60 | 1280 | 2.1 | 2.4 | φ100 | 6-10 | 238x200x245 |
| PW-DPT10-11C | 52 | 250 | 45 | 110 | 1950 | 2.1 | 2.4 | φ100 | 10-15 | 238x200x245 |
| PW-DPT15-34 | 52 | 500 | 49 | 135 | 1140 | 5.5 | 6 | φ150 | 20-25 | 330x275x350 |
| PW-DPT15-34 | 40 | 300 | 42 | 135 | 910 | 5.5 | 6 | φ150 | 28-33 | 330x275x350 |
| PW-DPT20-54 | 70 | 750 | 48 | 190 | 1000 | 8.6 | 9.4 | φ200 | 33-38 | 395x330x402 |
| PW-DPT20-54 | 55 | 600 | 48 | 185 | 800 | 8.6 | 9.4 | φ200 | 28-33 | 395x330x402 |
| PW-DPT20-55B | 135 | 1000 | 54 | 210 | 1200 | 8.6 | 9.4 | φ200 | 42-48 | 395x330x402 |
| PW-DPT20-55B | 127 | 800 | 53 | 200 | 1100 | 8.6 | 9.4 | φ200 | 38-42 | 395x330x402 |
| PW-DPT20-75 | 300 | 1500 | 58 | 280 | 1280 | 12.9 | 14 | φ200 | 55-65 | 435x420x390 |
| PW-DPT20-75 | 285 | 1200 | 55 | 250 | 1100 | 12.9 | 14 | φ200 | 48-58 | 435x420x390 |
| PW-DPT25-76 | 380 | 2100 | 62 | 380 | 1008 | 17.7 | 19 | φ250 | 80-90 | 533x513x420 |
| PW-DPT25-76 | 300 | 1800 | 59 | 340 | 878 | 17.7 | 19 | φ250 | 65-75 | 533x513x420 |
H3 Mini Ventilation Duct Fan -Dimensions
| Model | A | B | C | D | F | G | H | I | J-long hole |
|---|---|---|---|---|---|---|---|---|---|
| PW-DPT10-11 | 216 | 180 | 130 | 205 | 175 | 142 | 104 | 95 | 17X7 |
| PW-DPT10-11C | 216 | 180 | 130 | 205 | 175 | 142 | 104 | 95 | 17X7 |
| PW-DPT15-34 | 298 | 250 | 160 | 278 | 215 | 179 | 142 | 145 | 19X9 |
| PW-DPT20-54 | 350 | 300 | 235 | 360 | 280 | 235 | 190 | 198 | 21X11 |
| PW-DPT20-55B | 350 | 300 | 235 | 360 | 280 | 235 | 190 | 198 | 21X11 |
| PW-DPT20-75 | 382 | 330 | 260 | 385 | 368 | 235 | 190 | 198 | 24X12 |
| PW-DPT25-76 | 460 | 380 | 280 | 445 | 370 | 315 | 215 | 248 | 21X12 |
H3 Mini Ventilation Duct Fan – Curves
| A:PW-DPT10-11 | I:PW-DPT20-55B |
| B:PW-DPT10-11C | K:PW-DPT20-75 |
| D:PW-DPT15-34 | R1:PW-DPT25-76 |
| G:PW-DPT20-54 | R1:PW-DPT25-76 |
More functions about our H3 Mini Ventilation Duct Fan
- Metal appearance, overall all-metal construction surface electroscopes spraying treatment moisture-proof, corrosion-proof, rust-proof, fire-proof performance.

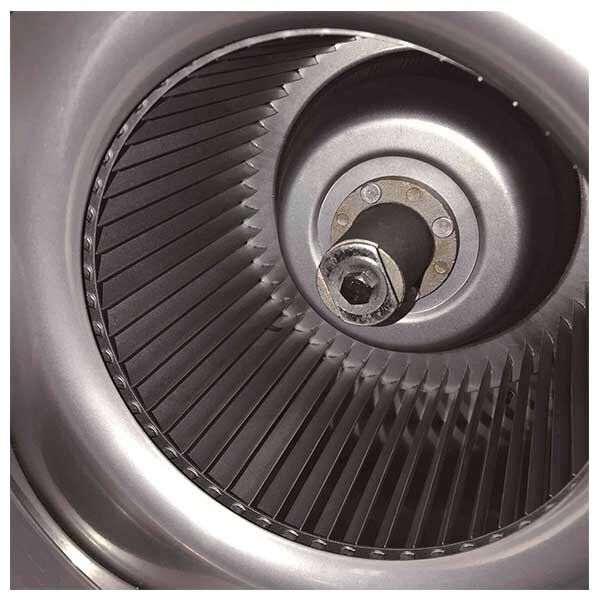

- Effectively gather wind power, increase wind speed, run more smoothly, can run for a long time with low noise, ball bearing motor, using a high-quality senior motor, low noise, low energy consumption, lasting lubrication, more stable operation
- Ventilation vents can be automatically opened and closed with airflow to prevent backflow and mosquito invasion, are removable and are easy to clean.
why choose pandaWind H3 Mini Ventilation Duct Fan
Advantages of our duct fan
- Ventilation function, circulating fresh air, purifying the environment, excluding polluted air
- Absorb odor, absorb odor gas from the bathroom
- The dust removal function can remove the floating dust in the home environment.
- Drainage function, exclude moisture from bathrooms, kitchens, etc.
- Take away heat, eliminate heat in a high-temperature environment.
features
- Pure copper motor
- Installation angle optional
- All-metal material is strong and durable
- No air leakage
- Patented check valve to prevent backflow
- Air duct precision, low noise.
benefits
- Solve The Poor Ventilation
- Reduce Environmental Noise
- Quiet Exhaust
- Provide Fresh Air
- Build Good Healthy
- Box structure noise reduction
- Noise-reducing version
- Optimized air duct noise reduction
