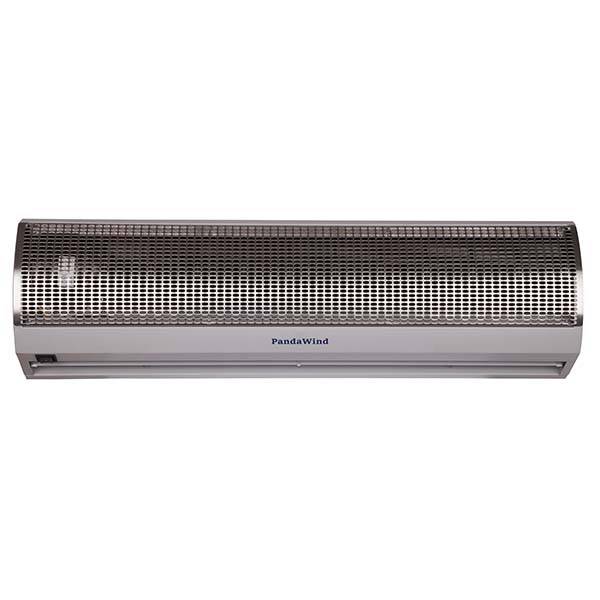

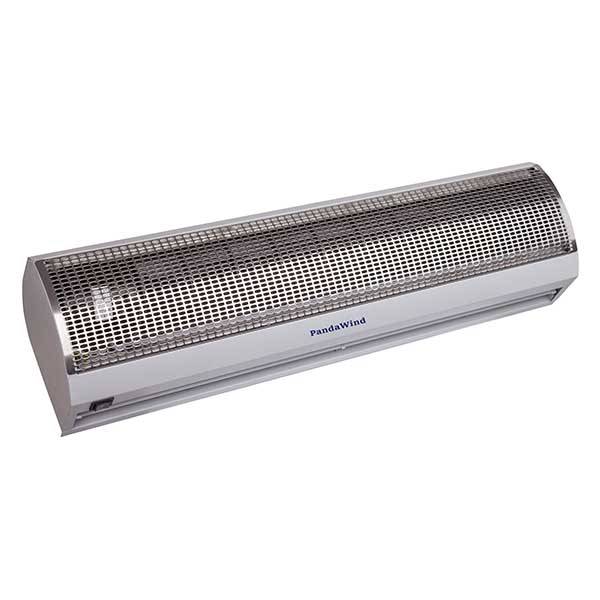

A6S series air curtain

Pandawind air curtains Application: sports center, big supermarket, subways, large shop, department store, factory…

For 35 model: installation heights to 3.5m (environmental separation) and 3m (insect control)

For 40 model: installation heights to 4m (environmental separation) and 3.5m (insect control)

Weight 5-13 kg
Dimensions 60-200 × 17.6 × 17.5 cm
Air Speed

14.5m/s, 9.5m/s


50Hz, 60Hz


110V, 200V, 220V, 240V

A6S series air curtain product video

see more details on the video

main points in this video

  • Check A6-S series air curtains at different angles
  • What is the advance of A6-S series air curtains?
  • Why you should choose this series of air curtains?
  • When do we use A6-S series air curtains?
  • Where is the installation of A6-S series air curtains?
  • How to installation A6-S series of air curtains?

A6S series air curtain data sheets

ModelVol/ (V)Fre(Hz)Motor input power (W)Air Velocity (M/S) Noise (dB)Air Volume (M3/H)N.W (KG)G.W (KG)Unit Size (MM)Packing Size (MM)

why choose pandaWind A6S series air curtain

The Most Important Thing Is To Choose The Correct And Effective Air Curtains. Why?

According to the NSF & AMCA standard, air curtains for customer entry shall have a minimum 8 inches (200mm) air stream depth and an air velocity of at least 600fpm (3.05m/s). the measurement point shall be at a distance of 3 ft (0.9m) above the floor.

For our A6S series air curtains, the max air velocity can reach 3.5m/s, so, our air curtains can definitely meet NSF & AMCA standards!


  • Quick to install, operate, clean and maintain
  • Remote control and door switch are optional
  • pure copper and two-speed motor
  • high-quality ABS Cross-flow fan with low noise operation
  • strong air flow & air speed
  • Wall & top mounting
  • low noise operation by perfect structure design


  • Invisible Door = Customers-friendly
  • Insect & Pests Stopper
  • Temperature Stability = Reduce Energy Loss
  • Cleanroom Protector = Protect Goods & Staffs
  • Compressor-Friendly
  • Perfect ROI
  • HVACR & Compressor-Friendly
a6s 1
