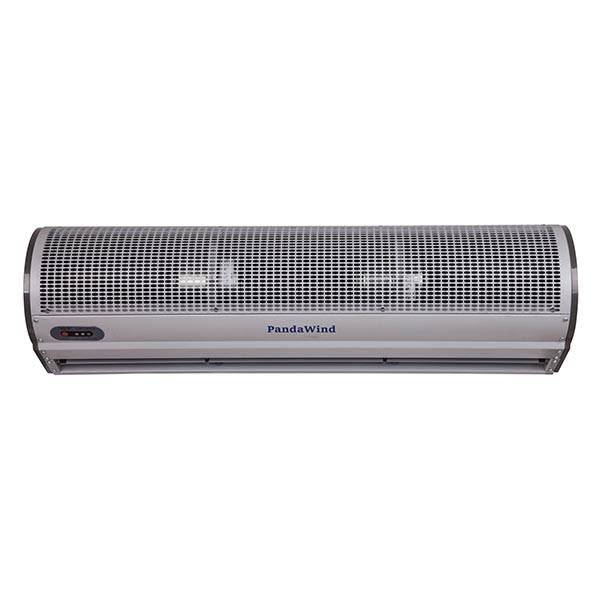

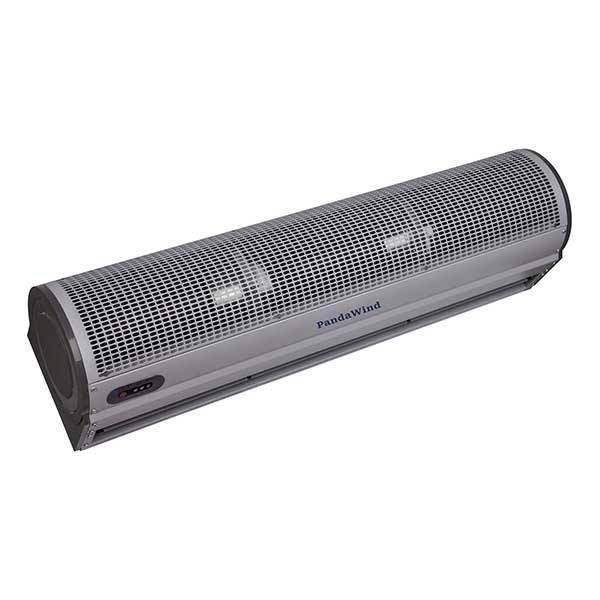

A7-1 series air curtain
Pandawind air curtains Application: sports center, big supermarket, subways, large shop, department store, factory…
For installation heights to 3m (environmental separation) and 2.5m (insect control)
| Weight | 5-13 kg |
|---|---|
| Dimensions | 60-200 × 17.6 × 17.5 cm |
| Air Speed | 11.5m/s, 9.5m/s |
| Frequency | 50Hz, 60Hz |
| Voltages | 110V, 200V, 220V, 240V |
A7-1 series air curtain product video
see more details on the video
main points in this video
- Check A7-1 series air curtains at different angles
A7-1 series air curtain data sheets
| Model | Vol/ (V) | Fre(Hz) | Motor input power (W) | Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | N.W (KG) | G.W (KG) | Unit Size (MM) | Packing Size (MM) |
|---|---|---|---|---|---|---|---|---|---|---|
| PW-3509-A7-1 | 220-240 | 50/60 | 130/180 | 9.5/11.5 | 52/54 | 1350/1700 | 11.5 | 12.5 | 935×237×225 | 985X275X285 |
| PW-3512-A7-1 | 220-240 | 50/60 | 180/260 | 9.5/11.5 | 55/57 | 1800/2300 | 14 | 15.5 | 1230×237×225 | 1280X275X285 |
| PW-3515-A7-1 | 220-240 | 50/60 | 250/340 | 9.5/11.5 | 56/58 | 2000/2900 | 16 | 18 | 1525×237×225 | 1575X275X285 |
| PW-3518-A7-1 | 220-240 | 50/60 | 330/420 | 9.5/11.5 | 57/59 | 2600/3500 | 20 | 22.5 | 1845×237×225 | 1895X275X285 |
why choose pandaWind A7-1 series air curtain
The Most Important Thing Is To Choose The Correct And Effective Air Curtains. Why?
According to the NSF & AMCA standard, air curtains for customer entry shall have a minimum 8 inches (200mm) air stream depth and an air velocity of at least 600fpm (3.05m/s). the measurement point shall be at a distance of 3 ft (0.9m) above the floor.
For our A7-1 series air curtains, the max air velocity can reach 3.5m/s, so, our air curtains can definitely meet NSF & AMCA standards!
features
- Super Easy To Install, Operate, Clean And Maintain
- Remote Control And Door Switch Are Optional
- Pure Copper And Two-Speed Motor
- High-Quality Abs Cross-Flow Fan With Low Noise Operation
- Strong Air Flow & Air SpeedBy Perfect Structure Design
- Ultra-Slim Design Suitable Most Commercial Building
benefits
- Invisible Door = Customers-friendly
- Insect & Pests Stopper
- Temperature Stability = Reduce Energy Loss
- Cleanroom Protector = Protect Goods & Staffs
- Compressor-Friendly
- Perfect ROI
- HVACR & Compressor-Friendly
