X4S series air curtain
Pandawind air curtains Application: sports center, big supermarket, subways, large shop, department store, warehouse, factory…
For 35 model: installation heights to 3.5m (environmental separation) and 3m (insect control)
For 40 model: installation heights to 4m (environmental separation) and 3.5m (insect control)
| Weight | 135-24.5 kg |
|---|---|
| Dimensions | 90-180 × 23.7 × 22.5 cm |
| Air Speed | 13m/s, 16m/s, 20m/s |
| Frequency | 50Hz, 60Hz |
| Voltages | 110V, 200V, 220V, 240V |
X4S series air curtain product video
see more details on the video
main points in this video
- Check X4S series air curtains at different angles
- What is the advance of X4S series air curtains?
- Why you should choose this series of air curtains?
- When do we use X4S series air curtains?
- Where is the installation of X4S series air curtains?
- How to installation X4S series of air curtains?
X4S series air curtain data sheets
| Model | Vol/ (V) | Fre(Hz) | Motor input power (W) | Air Velocity (M/S) | Noise (dB) | Air Volume (M3/H) | N.W (KG) | G.W (KG) | Unit Size (MM) | Packing Size (MM) |
|---|---|---|---|---|---|---|---|---|---|---|
| PW-3509L-X4-S | 220-240 | 50/60 | 180/220 | 13/16 | 49/52 | 900/1100 | 13.5 | 14.5 | 935×237×225 | 985X275X285 |
| PW-3512L-X4-S | 220-240 | 50/60 | 220/270 | 13/16 | 50/53 | 1200/1500 | 16.5 | 18 | 1230×237×225 | 1280X275X285 |
| PW-3515L-X4-S | 220-240 | 50/60 | 280/350 | 13/16 | 52/55 | 1500/1900 | 21.5 | 23.5 | 1525×237×225 | 1575X275X285 |
| PW-3518L-X4-S | 220-240 | 50/60 | 320/400 | 13/16 | 55/57 | 1800/2280 | 24.5 | 27 | 1845×237×225 | 1895X275X285 |
| PW-4009L-X4-S | 220-240 | 50/60 | 300/370 | 16/20 | 54/57 | 1000/1400 | 13.5 | 14.5 | 935×237×225 | 985X275X285 |
| PW-4012L-X4-S | 220-240 | 50/60 | 370/460 | 16/20 | 55/58 | 1500/1900 | 16.5 | 18 | 1230×237×225 | 1280X275X285 |
| PW-4015L-X4-S | 220-240 | 50/60 | 480/600 | 16/20 | 58/61 | 1900/2300 | 21.5 | 23.5 | 1525×237×225 | 1575X275X285 |
| PW-4018L-X4-S | 220-240 | 50/60 | 560/700 | 16/20 | 61/63 | 2250/2850 | 24.5 | 27 | 1845×237×225 | 1895X275X285 |
why choose pandaWind X4S series air curtain
The Most Important Thing Is To Choose The Correct And Effective Air Curtains. Why?
According to the NSF & AMCA standard, air curtains for customer entry shall have a minimum 8 inches (200mm) air stream depth and an air velocity of at least 600fpm (3.05m/s). the measurement point shall be at a distance of 3 ft (0.9m) above the floor.
For our X4S series air curtains, the max air velocity can reach 3.5m/s, so, our air curtains can definitely meet NSF & AMCA standards!
features
- Quick to install, operate, clean and maintain
- Remote control and door switch are optional
- pure copper and two-speed motor
- high-quality ABS Cross-flow fan with low noise operation
- strong air flow & air speed
- Wall & top mounting
- low noise operation by perfect structure design
benefits
- Invisible Door = Customers-friendly
- Insect & Pests Stopper
- Temperature Stability = Reduce Energy Loss
- Cleanroom Protector = Protect Goods & Staffs
- Compressor-Friendly
- Perfect ROI
- HVACR & Compressor-Friendly
Share X4S series air curtain With Your Clients
Related products
-

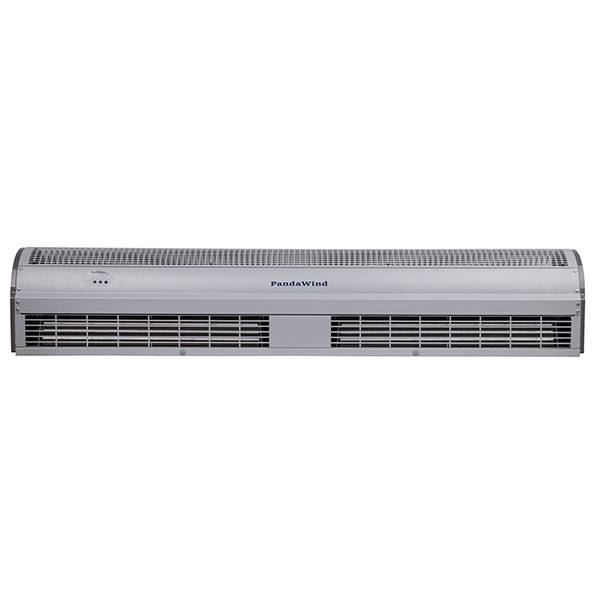

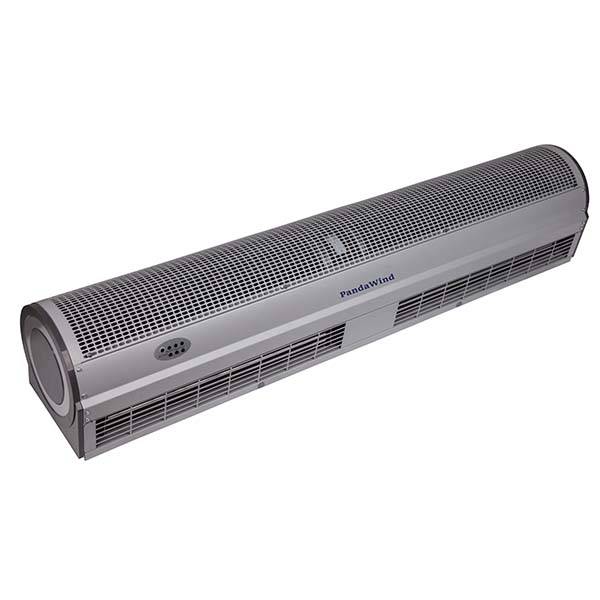

A7 heating series air curtain
